Product Overview
The FZN16A-12D indoor high-voltage vacuum load break switch and the FZRN16A-12D switch-fuse combination unit are three-phase switching units for distribution networks of 6 to 12 kV at 50 Hz. They control and protect transformers, cables and line sections, and are used in switch stations, distribution rooms, and industrial and commercial substations. The load break switch makes and breaks load current; in the combination unit the circuit is completed with back-up fuses, so the switch breaks load and overload current while the fuse clears short-circuit current, protects the transformer against overload and keeps the equipment from running on two phases after a fuse blows. The unit suits installations that call for an oil-free switch, no overhaul between services and frequent operation.

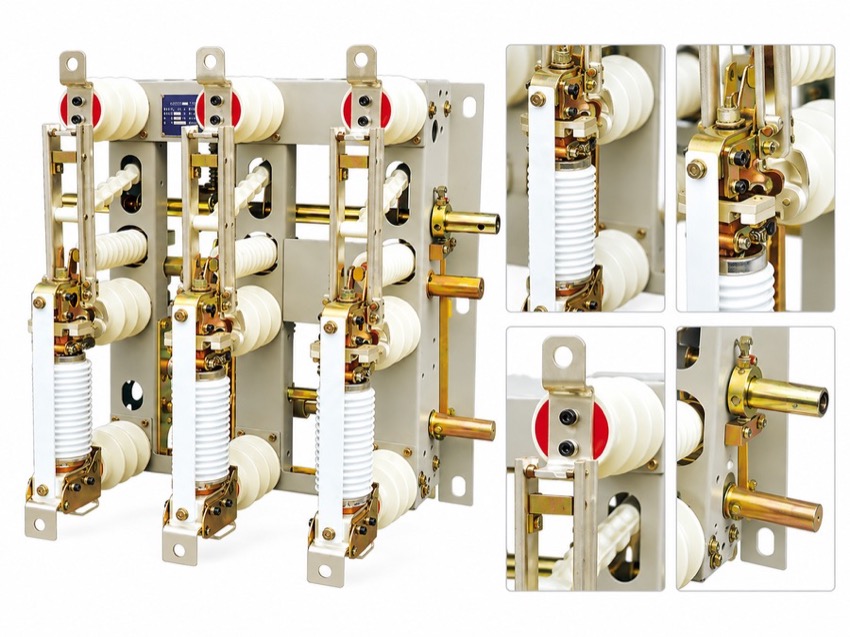

Product Display

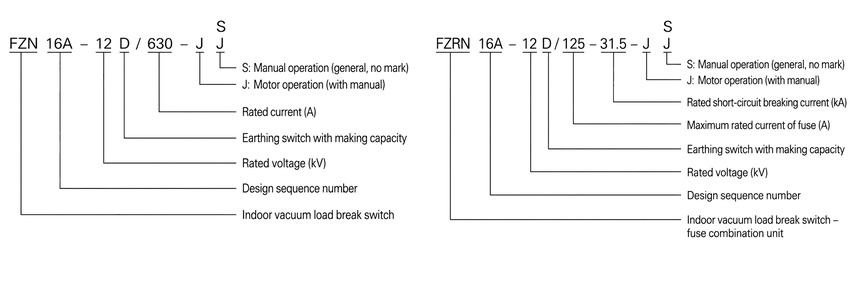

Model Designation

Model format: FZN16A-12D/630 (load break switch) and FZRN16A-12D/125-31.5 (switch-fuse combination unit)
- FZN: indoor vacuum load break switch; FZRN: same combined with fuse
- 16: design sequence number; A: derivative code
- 12: rated voltage, kV (the unit serves distribution networks of 6 to 12 kV)
- D: earthing switch with making capacity
- 630: rated current, A; 125: maximum rated current of the fuse, A; 31.5: rated short-circuit breaking current, kA
- J: motor operation with manual operation; S: manual operation, generally no mark
Service Conditions
- Ambient temperature: +40 °C upper, -25 °C lower
- Altitude: not more than 1000 m
- Relative humidity: daily average not more than 95%, monthly average not more than 90%
- Seismic intensity: not more than 8 degrees
- Site condition: no fire, explosion hazard, chemical corrosion or violent vibration
- Pollution level: II
Construction
The vacuum arc extinction chambers of the three poles stand upright on a common steel frame carried on insulating support columns, which keeps the unit compact and gives it high dynamic and thermal stability. Insulating pull rods and sliders transmit the movement of the mechanism to the contacts, so each closing or opening operation is completed in one stroke and the contact speed is independent of the operator.
The switch has a visible isolation gap, and the earthing switch with making capacity bonds the de-energised side before maintenance. Mechanical interlocks between the load break switch, the earthing switch and the fuse compartment satisfy the five-prevention requirements of switchgear.
The spring mechanism is charged for closing, and a buffer pad absorbs the impact at opening while an auxiliary switch serves the control and signalling circuits. Motor operation with an electric motor and a release device is available, which allows the unit to take part in remote control and to trip on a protective relay signal.
Technical Data
| No. | Item | Unit | Value |
|---|---|---|---|
| 1 | Rated voltage / highest operating voltage | kV | 12 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Rated current | A | 630 |
| 4 | Rated breaking current of active load | A | 630 |
| 5 | Rated closed-loop breaking current | A | 630 |
| 6 | Rated breaking current of 5% active load | A | 31.5 |
| 7 | Rated cable charging breaking current | A | 10 |
| 8 | Rated capacitive breaking current | A | 400 |
| 9 | Rated no-load transformer breaking current | A | No-load current of a 1600 kVA transformer |
| 10 | 1 min power-frequency withstand voltage, to earth and between phases / across the isolation gap | kV | 42/48 |
| 11 | Lightning impulse withstand voltage, full wave, to earth and between phases / across the isolation gap | kV | 75/85 |
| 12 | Rated short-time withstand current (thermal stability) | kA/s | 20/3 |
| 13 | Rated peak withstand current (dynamic stability) | kA | 50 |
| 14 | Rated short-circuit making current | kA | 50 |
| 15 | Number of breaking operations at rated current | times | 10000 |
| 16 | Mechanical life | times | 10000 |
| 17 | Permissible cumulative wear of the contacts | mm | 3 |
| 18 | Operating torque for opening and closing | N·m/(N) | 120 (240) |
| 19 | Rated closing operating voltage / current | V/A | ~220/0.5 |
| 20 | Rated opening operating voltage / current | V/A | ~220/3 |
Standards
The source page does not quote a standard number for this switch. The usual references for indoor high-voltage load break switches are IEC 62271-102 / IEC 60265-1 and GB/T 3804; confirm the applicable edition with the factory when ordering.
Installation & Dimensions

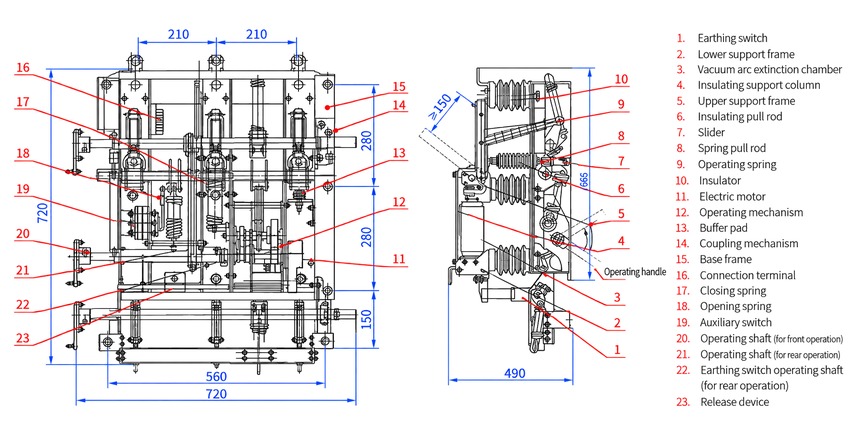

Installation Diagram

The unit is fixed on its base frame in the cubicle. Before energisation, check the closed, open and earthed positions and the interlocks between the load break switch, the earthing switch and the fuse compartment, fit the specified back-up fuse with its striker engaging the release device, and measure the main circuit resistance and the contact travel.
| View / dimension | Value (mm) |
|---|---|
| Phase spacing, adjacent poles | 210, marked twice |
| Front view horizontal | 560 and 720 (720 outermost) |
| Front view vertical steps | 280 / 280 / 150 |
| Side view horizontal | 490 |
| Side view vertical | 665 |
| Marked diagonal dimension | not less than 150 |
